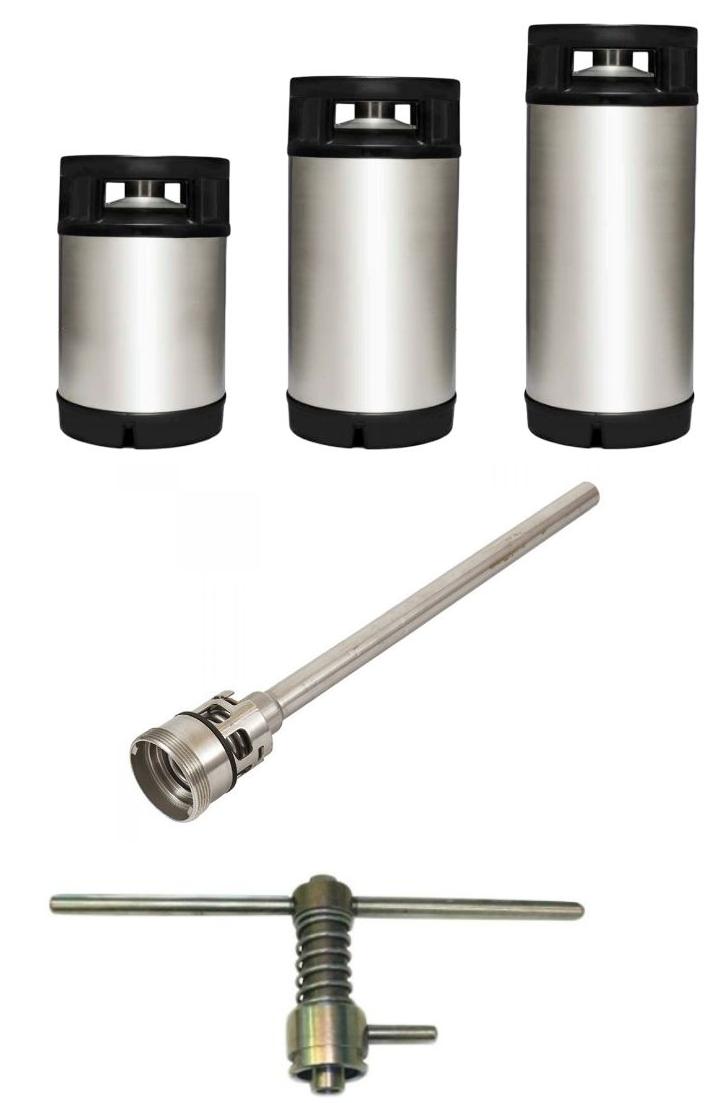

Closed containers for beverage (kegs)
Type with rubber bottoms and handles. Complete with tapping rod
These kegss are produced in the 286 mm and 320 mm diameter versions with vulcanized rubber bottom and handle on the stainless steel body or in the 320 mm diameter version completely in stainless steel. They are very robust, easy to handle and stackable KEGs, thus allowing considerable savings in storage space. KEGS in these versions are normally used by breweries and wineries.
| art. | against. | lt. | cm. | kg. | Euro |
|---|---|---|---|---|---|
| 190A | KEGS WITH BAYONET CONNECTION 20 Lt. | 20 | 24xh56 | 4.2 | 152.00 |
| 191A | KEGS WITH BAYONET CONNECTION 25 Lt. | 25 | 29xh51 | 5.2 | 159.00 |
| 192A | KEGS WITH BAYONET CONNECTION 30 Lt. | 30 | 29xh60 | 6.3 | 171.00 |
| 192S | TAPPING ROD FOR BAYONET HEAD | - | as e.g. 400 | 0.8 | 45.00 |
| 192C | WRENCH for UNSCREWING TAPPING ROD | - | - | 2.5 | 332.00 |
- AISI 304 stainless steel kegs
- Rubber handles and bottom
- Seals: EPDM
- Maximum operating pressure: 5 bar
- Complete with tapping rod with bayonet or lateral connection
Click for kegs features
THE FLOWJET TAPPING PUMPS
They are electric pumps equipped with a pressure switch which come into operation when the tap is opened and stop automatically when it is closed.
BevJet Compact is ideal for beverage dispensing applications requiring frequent line changes, and flow rates from 0.8 to 1.0 GPM. The product dispenses safely through NSF Alcohol less than 15% approved tubing and cleaning is as simple as reconnecting the tube. BevJet Compact system intelligence automatically stops when the supply is empty. This unit’s compact design allows it to be mounted in tight spaces such as cabinets, carts and any under counter application. The new robust design combines innovative features and relentless testing to offer a pump with a long, trouble-free service life.
Features and Benefits
The new model pictured above has a shutdown timer that comes into operation 3 minutes after the pump runs idle without sucking in liquid, thus avoiding damage to the motor. Power supply 220Vac - flow rate 4 lt/min - head 5 m.
- Easy to clean, prevents contamination and minimizes noise.
- Built in shut-off, automatically shuts down the unit when the bag is empty.
- NSF Certification, ensures compliance with approved piping and fittings.
- Quick Disconnect Port, allows hose replacement in seconds.
- Flojet Electric Diaphragm Pumps Technology, ensures run dry capabilities, allowing for a long, trouble-free service life.
- Thermal Protection, avoiding costly service fees and provides peace of mind.
- Long Life Motor.
- Illuminated ON/OFF switch to indicate when supply is depleted.
Price of the Flowjet Bevjet pump: €220.00
Side tapping heads (type A)
Bayonet tapping heads (S type)
Connector to connect to the kegs for tapping to be carried out via compressed gas introduced into the keg
| art. | model | € |
|---|---|---|
| 396 | lateral type "A" | 130.00 |
| 397 | bayonet type "S" | 130.00 |
Pressure reducers
Pressure reducers for nitrogen or CO2 cylinders Available both in the standard version and in the version with electric preheater. Used to handle gases that tend to freeze.
| art. | model | € |
|---|---|---|
| 337 | nitrogen reducer | 125.00 |
| 60 | CO2 reducer | 125.00 |
| 336 | preheated CO2 reducer | 427.00 |
