Production of professional insulated and refrigerated stainless steel fermenters for beer.
Available capacities: 75, 100, 200, 300, 500, 800, 1000, 1500 and 2000 litres.
Born from our long experience of equipment for the food industry, our insulated and refrigerated stainless steel fermenters have been specifically designed for the controlled fermentation of beer
Similarly to the series tanks MARTE and GIOVE, used in the winemaking sector, these refrigerated fermenters have a refrigeration unit fixed in the lower part of the base. therefore, unlike classic fermenters equipped with heat exchange pockets, they do not require any connection to external glycol coolers as it is the refrigerator motor that precisely regulates the cooling of the beer.
Everything is then insulated with insulating polyurethane and further covered on the outside by a casing also in stainless steel.
The high thickness of the cavity filled with expanded polyurethane guarantees high thermal insulation, allowing the machine to have high energy efficiency and consequently extremely low electricity consumption.
These truncated conical fermenters can be open-air (MARTE series) or with an airtight upper manhole (GIOVE series) and are equipped with two drains: the upper one, in the middle of the conical part, serves as a partial drain and is used for the withdrawal of the clarified liquid while the lower one, in the center of the cone, is used for the total drain and the emptying of lees and/or deposits that occur during thermo-controlled fermentations (precipitation of yeasts, tartrates, etc.).
All fermenters are equipped with digital thermostat/thermometer which allows you to set and maintain the desired temperature during the cooling cycle which can drop to temperatures close to or even below zero.
Upon request, these tanks can be supplied with the 'HEATING' option which allows to heat the beer by electrical resistors
The maintenance of the desired temperature is regulated exclusively by the digital thermostat which, in a totally transparent manner to the user, commands the start of the fridge motor or the electric resistance according to the needs of the moment

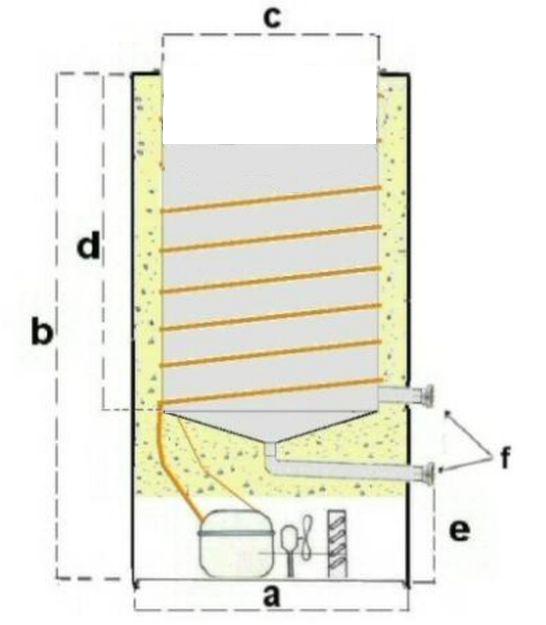

DIMENSIONS TABLE OF TANK MODEL WITH CONICAL BOTTOM 10°
| Capacity Lt. | a | b | c | d | And | f | Kg. |
|---|---|---|---|---|---|---|---|
| 80 | 650 | 900 | 440 | 440 | 400 | 1"M. | 52 |
| 100 | 650 | 1200 | 510 | 520 | 400 | 1"M. | 60 |
| 150 | 650 | 1350 | 510 | 760 | 400 | 1"M. | 64 |
| 200 | 760 | 1400 | 620 | 990 | 420 | 1"M. | 70 |
| 250 | 760 | 1500 | 620 | 1200 | 420 | 1"M. | 73 |
| 300 | 760 | 1600 | 620 | 1300 | 420 | 1"M. | 80 |
| 350 | 760 | 1700 | 620 | 1400 | 420 | 1"M. | 85 |
| 500 | 860 | 1850 | 725 | 1000 | 430 | 1"M. | 100 |
| 700 | 1050 | 1650 | 940 | 1050 | 420 | 1"M. | 120 |
| 1000 | 1060 | 1950 | 940 | 1470 | 410 | 1"M. | 180 |
| 1500 | 1320 | 2460 | 1150 | 1470 | 450 | 1"M. | 280 |
| 2000 | 1450 | 2600 | 1280 | 1490 | 500 | 1"M. | 360 |

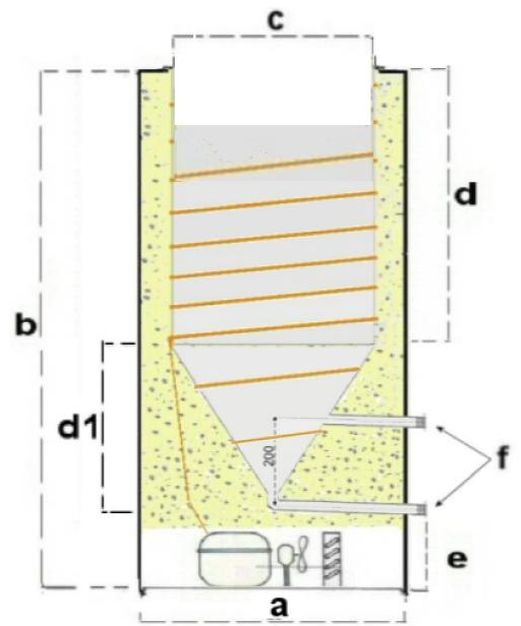

DIMENSIONS TABLE OF TANK MODEL WITH CONICAL BOTTOM 60°
| Capacity litres | a | b | c | d | d1 | And | f | Kg |
|---|---|---|---|---|---|---|---|---|
| 80 | 560 | 1200 | 440 | 400 | 380 | 400 | 1"M. | 52 |
| 100 | 650 | 1200 | 510 | 350 | 440 | 400 | 1"M. | 60 |
| 150 | 650 | 1450 | 510 | 580 | 440 | 400 | 1"M. | 64 |
| 200 | 760 | 1400 | 620 | 480 | 530 | 420 | 1"M. | 70 |
| 250 | 760 | 1500 | 620 | 640 | 530 | 420 | 1"M. | 73 |
| 300 | 760 | 1700 | 620 | 810 | 530 | 420 | 1"M. | 80 |
| 350 | 760 | 1850 | 620 | 970 | 530 | 420 | 1"M. | 85 |
| 500 | 860 | 2000 | 725 | 1000 | 620 | 430 | 1"M. | 105 |
| 700 | 860 | 2500 | 725 | 1460 | 620 | 430 | 1"M. | 120 |
| 1000 cone 30° | 1080 | 2200 | 930 | 1400 | 270 | 430 | 1"M. | 170 |
| 1500 30° cone | 1300 | 2400 | 1150 | 1330 | 340 | 430 | 1"M. | 210 |
| 2000 cone 30° | 1420 | 2450 | 1270 | 1460 | 370 | 430 | 2"M. | 250 |
Refrigerated fermenters are stainless containers designed to store liquids or substances at a controlled temperature
They are used in the beer industry to control the fermentation of the product
| LT. | Ø x H cm | KG | Watt. motor standard |
€ 10° cone |
€ 60° cone |
|---|---|---|---|---|---|
| 100 | 66x125 | 47 | 350 | 2'973.00 | 3'744.00 |
| 200 | 76x125 | 50 | 390 | 3'644.00* | 4'353.00* |
| 300 | 76x150 | 70 | 420 | 3'985.00* | 5'252.00* |
| 500 | 87x180 | 94 | 630 | 4'961.00* | 6'759.00* |
| 800 | 108x170 | 150 | 900 | 6'173.00* | 8'556.00* |
| 1000 | 108x188 | 195 | 1100 | 7'959.00* | cone 30° 11'405.00* |
| 1500 | 127x215 | 250 | - | 9'817.00 | cone 30° 14'438.00 |
| 2000 | 145x215 | 280 | - | 13'713.00 | cone 30° 17'168.00 |
| SUPER motor difference 16% -----(*) Difference for three-phase motor 10% (in normal motors) ----- Heating resistance € 390 up to 300 Lt. | €600 from 500 to 800 litres. | €800 from 1000 to 2000 litres. | |||||
Pneumatic floats serve to protect liquids such as wine, oil and other foods from oxidation, creating an airtight barrier between the liquid in the tanks and the outside air, isolating the product and preserving it during storage.
They swell to fit snugly against the walls of the tank, forming a barrier that prevents contact with oxygen
| lt. | € |
|---|---|
| 50-75-100 | 236.00 |
| 200 | 300.00 |
| 300 | 311.00 |
| 500 | 343.00 |
| 800 | 466.00 |
| 1000 | 533.00 |
| 1500 | 576.00 |
| 2000 | 801.00 |
Stainless steel lids complete with gasket and metal locking band. Used to make refrigerated and non-refrigerated stainless steel fermenters semi-hermetic. The silicone rubber gasket is placed on the edge of the tank. The kit is compatible exclusively with our stainless steel tanks
| lt. | € |
|---|---|
| for tanks up to 100 LITRES | 105.00 |
| for 101-250 LITRE tanks | 122.00 |
| for 300-500 LITRE tanks | 172.00 |
| for 600-800 LITRE tanks | 258.00 |

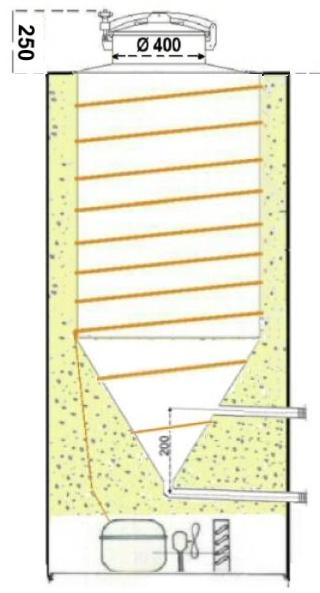

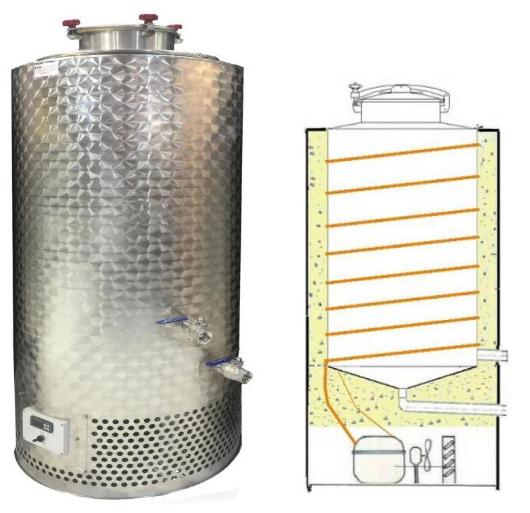

This is the hermetic version of the MARTE series from which it differs only in the traditional upper airtight MANHOLE with 4 handwheels.
manhole cover
4 flyers
| LT. | Ø x H cm | KG | Watt. standard engine |
Kcal a 0°C standard |
Kcal a 0°C Super |
€ 10° cone |
€ 60° cone |
|---|---|---|---|---|---|---|---|
| 100 | 66x140 | 47 | 350 | 440 | 710 | 3'344.00 | 3'971.00 |
| 200 | 68x150 | 50 | 390 | 780 | 1610 | 3'973.00* | 4'595.00* |
| 300 | 76x150 | 70 | 420 | 910 | 1845 | 4'442.00* | 5'513.00* |
| 500 | 87x180 | 94 | 630 | 1385 | 2850 | 5'379.00* | 7'248.00* |
| 800 | 108x200 | 150 | 900 | 1710 | 3510 | 7'670.00* | 9'058.00* |
| 1000 | 108x220 | 195 | 1100 | 2550 | 7420 | 9'803.00* | cone 30° 11'788.00* |
| 1500 | 127x245 | 250 | - | - | 9610 | 12'113.00 | cone 30° 15'374.00 |
| 2000 | 145x265 | 280 | - | - | 9610 | cone 30° 15'352.00 | cone 30° 18'246.00 |
| SUPER motor difference 16% -----(*) Difference for three-phase motor 10% (in normal motors) ----- Heating resistance € 390 up to 300 Lt. | €600 from 500 to 800 litres. | €800 from 1000 to 2000 litres. | |||||||
The photo shows an assembly phase of one of our 2000 liter refrigerated fermenters on which the "heating"option is installed, obtained with the application of a heating cable (highlighted by the red arrow) next to the refrigeration coil.
Temperature management occurs via digital thermostat : the system activates the fridge motor or the heating resistance in full autonomy to match the real temperature with the setpoint set by the user.
The cable has a power of 50 W/M . We usually propose a power of 1 W/litre (e.g. 500W for 500 litres), which allows a thermal increase of approx 1.2°C/hour . Upon request, it is possible to install higher powers.
The application of the heating cable must be done at the time of initial assembly of the tank and cannot be added subsequently to pre-existing tanks as both the heating cable and the cooling coil are incorporated into the insulation of the tank.
The surcharge applied for the 'heating' option is:
All prices indicated on the site are ex-warehouse
