Various types of liter counters are available for use with food liquids or even liquids characterized by high aggressiveness.
| Turbine digital litre-counter | mechanical liter counters |
|---|---|
| dosing liter counters | electromagnetic liter counter |
Stainless steel body (316) with non-toxic plastic conveyors. It is the most suitable for measuring food liquids in general or corrosive or aggressive chemical liquids. It resists high pressures and temperatures up to 70 degrees.
GAS male/male threaded connections. Applicable to any type of pipe, it can also work by simple gravity.
OPERATING PRINCIPLE: the axial turbine with which these liter counters are equipped generates, during rotation, electromagnetic pulses captured by the PF5 display which must be combined with the liter counter allowing the counting and display of the data.
| L/min | Bar | Temp. | Thread | Supports | € |
|---|---|---|---|---|---|
| 3÷30 | 60 | 70° | 1"M | Cuscin. | 490.00 |
| 7÷70 | 60 | 70° | 1"M | We hope. | 490.00 |
| 10÷100 | 60 | 70° | 1"¼ M | We hope. | 565.00 |
| 30÷350 | 60 | 70° | 1"½ M | We hope. | 670.00 |
| 150÷700 | 60 | 70° | 2"M | We hope. | 870.00 |
| 300÷1200 | 60 | 70° | 3"M | We hope. | 1330.00 |
| digital display | € |
|---|---|
| PF5 | 490.00 |

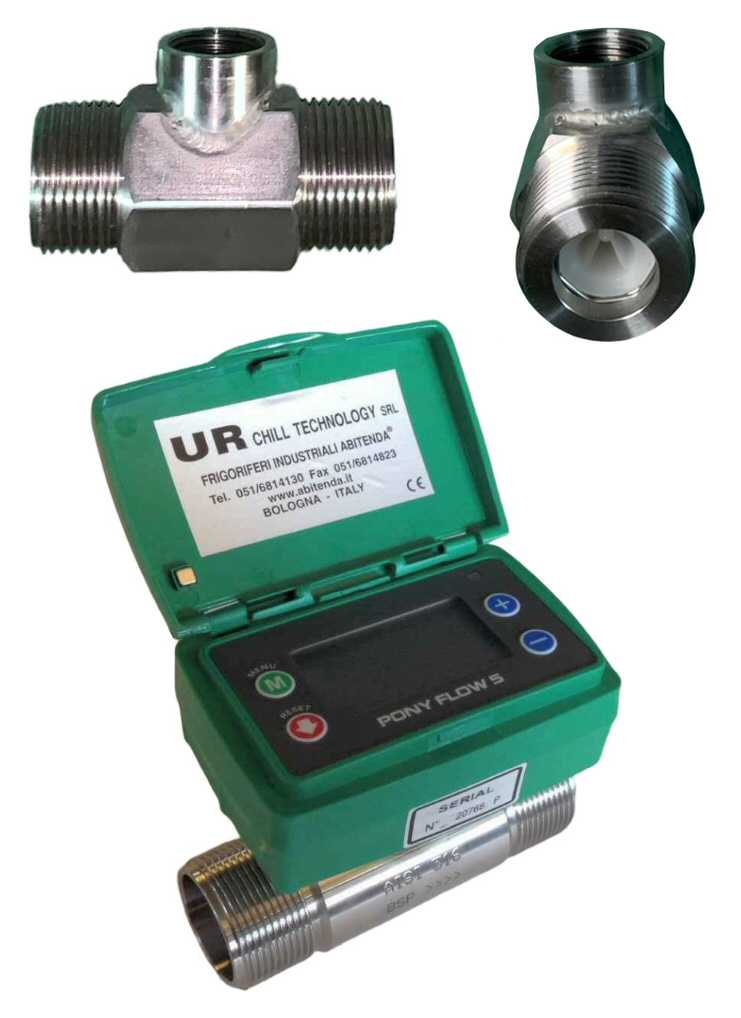

The PF5 digital display is equipped with a sensor that is screwed directly onto the body of the liter counter, however a version is also available in which the display (without sensor) can be installed remotely up to 4 meters away via an extension cable equipped with a sensor.
Accuracy ± 1%.
It can be calibrated to count any type of liquid even of low/medium density as long as it is free of solid parts. Calibration is done directly on the display keyboard
Power is supplied by a normal 9 volt alkaline battery.

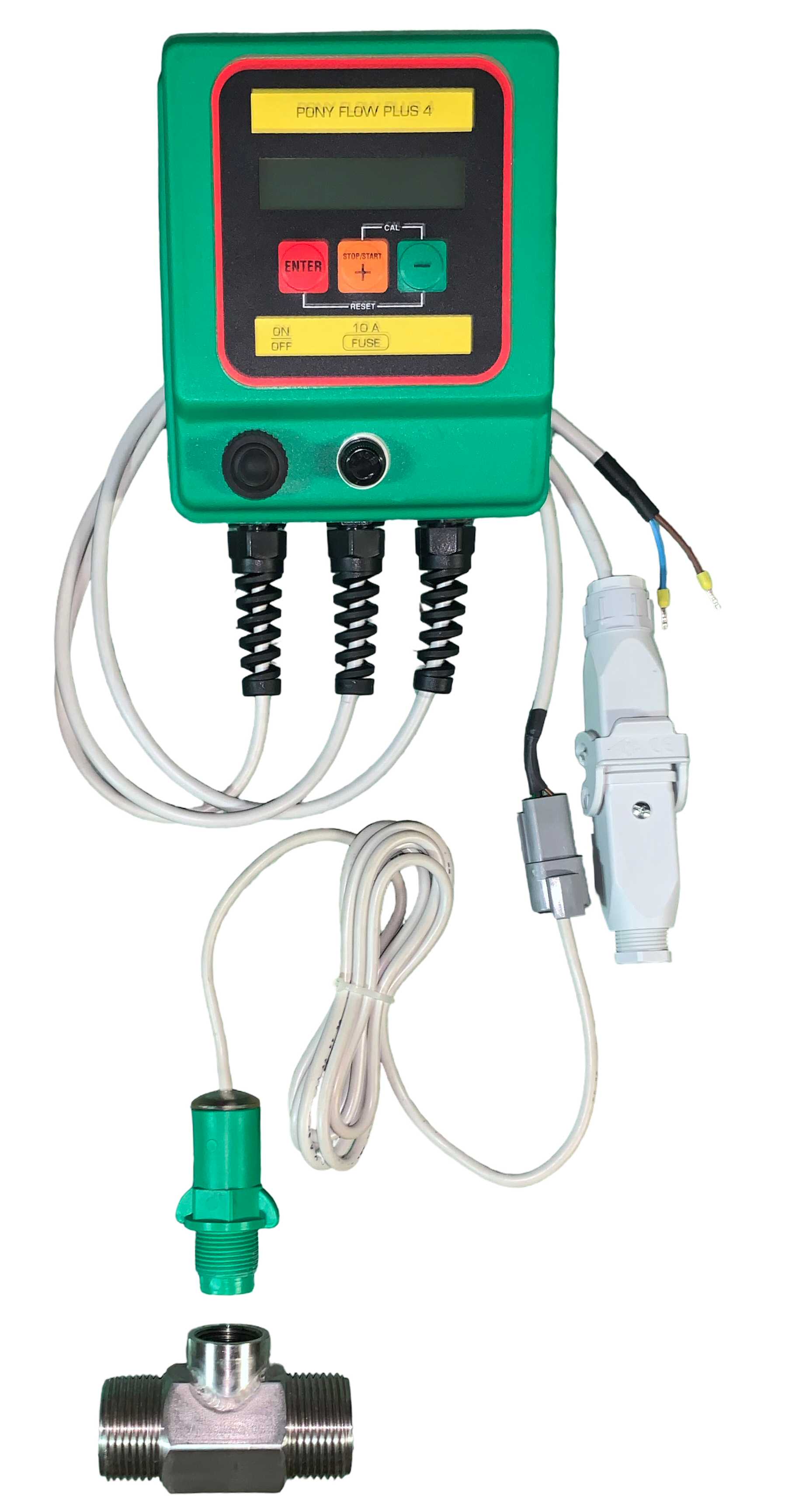

As an alternative to the PF5 display, if you need to create a complete dosing system, the PF4Plus display visible on the left can be used on all types of liter counters, both stainless steel and nylon; in this case it is necessary to use a sensor which is screwed onto the body of the liter counter and then connected via a cable to the PF4Plus display. This type of display, unlike the PF5, has a 12VDC 10A output through which it is possible to drive a power relay to which any electrical device such as a solenoid valve or an electric pump can be connected. The setting of the quantity of liquid to be dispensed is carried out directly on the keyboard and pressing the "start"button on the display closes a circuit that supplies an output voltage of 12 Vdc which can directly drive a 12Vdc solenoid valve or a 12Vdc relay (dry contact) in turn connected to any user such as an electric pump or a solenoid valve. When the set quantity is reached, the circuit returns to zero volts, thus stopping the device that regulates the flow.
| digital display | € |
|---|---|
| PF4 Plus | 770.00 |
| 12VDC power supply | 139.00 |
| square wave sensor | 120.00 |
Backlit display for flow and velocity readings Liquid measurement and reading system; measures flow, speed and controls the 12 Vdc motorized solenoid valve if necessary. It is possible to measure: cumulative volume delivered (with reset) up to 999,999 units (flow, speed) and partial units in different units of measurement: litres, gallons, km/h, miles/h. It can be connected to sine wave, square wave and hall effect sensors. Pulse setting for all liter counter measurements. Possibility of setting the quantity to be dosed and command of the closing of the solenoid valve when said quantity is reached. 12 Vdc power supply (power supply not included)
Oscillating disc operation
| art. | connection | € |
|---|---|---|
| 107/3-4" | 3/4"F. nylon | 233.00 |
| 107/1" | 1"F. nylon | 233.00 |
| 107/Stainless steel 1" | 1"F. inox | 395.00 |

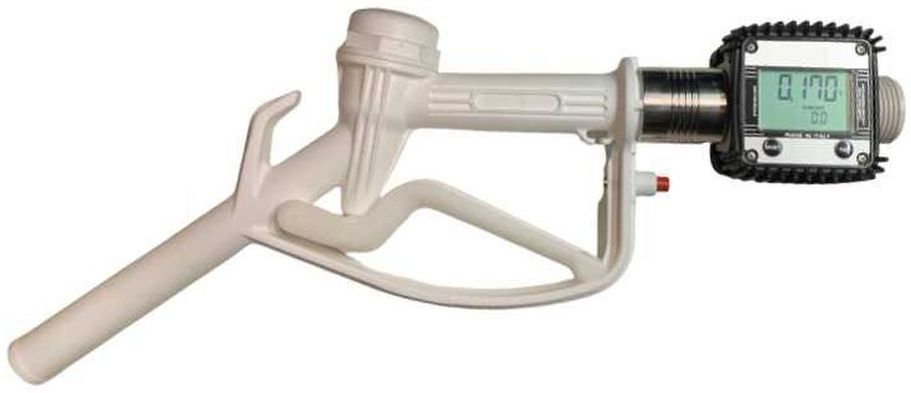

Dosing gun with turbine litre-counter
Price of the complete pistol with digital liter counter: €275.00
MATERIAL USED FOR CONSTRUCTION: The parts in contact with the liquid are made of stainless steel or nylon so it can also be used for food products such as water, wine, milk etc. and also thick like yogurt or fruit juices, as long as they have electrical conductivity greater than 300 mS/cm
| Cod | Bar | LT/MIN | US gpm | fil.bsp | € |
|---|---|---|---|---|---|
| OR1 | 20 | 0.5-10 | 0.13-2.6 | G ¼ | 1260.00 |
| OR2 | 40 | 0.5-10 | 0.13-2.6 | G ¾ | 1320.00 |
| OR3 | 20 | 1-20 | 0.3-5 | G ¾ | 1260.00 |
| OR4 | 40 | 1-20 | 0.3-5 | G ¾ | 1320.00 |
| OR5 | 20 | 2.5-50 | 0.6-13 | G ¾ | 1260.00 |
| OR6 | 40 | 2.5-50 | 0.6-13 | G ¾ | 1320.00 |
| OR7 | 20 | 5-100 | 1.3-26 | G 1 | 1260.00 |
| OR8 | 40 | 5-100 | 1.3-26 | G 1 | 1320.00 |
| OR9 | 20 | 10-200 | 2.6-53 | G 1 | 1260.00 |
| OR10 | 40 | 10-200 | 2.6-53 | G 1 | 1320.00 |
| OR11 | 20 | 10-200 | 2.6-53 | G 1¼ | 1260.00 |
| OR12 | 20 | 20-400 | 5-106 | G 1½ | 1260.00 |
| OR13 | 20 | 30-600 | 8-158 | G 2 | 1260.00 |

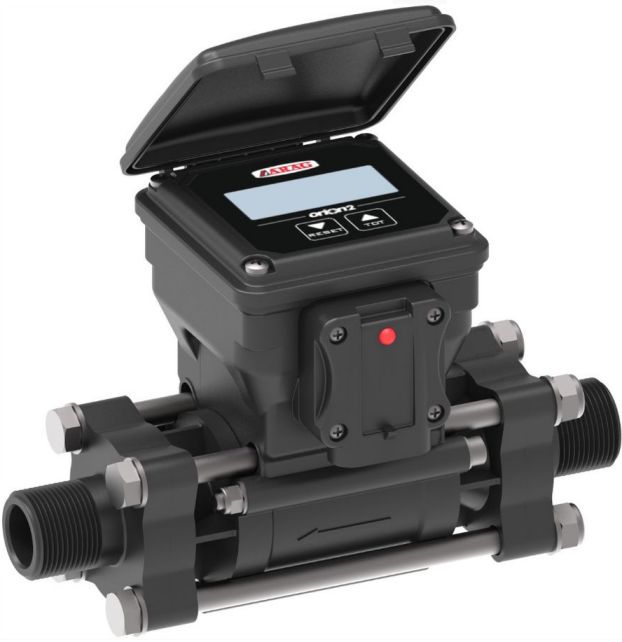

The Orione liter counters are available in different versions with flow rates from a minimum of 0.5 l/min to a maximum of 600 l/min. as visible in the table above. The maximum pressure is 20 or 40 bar. It can drive a stop solenoid valve or an electric pump via the pump stop module (optional dry contact relay); just set the quantity of liters to be dispensed on the display and press the Start button and the relay closes, starting the electric user. When the set quantity is reached, the relay opens again, stopping the power supply to the electric pump and/or the solenoid valve.

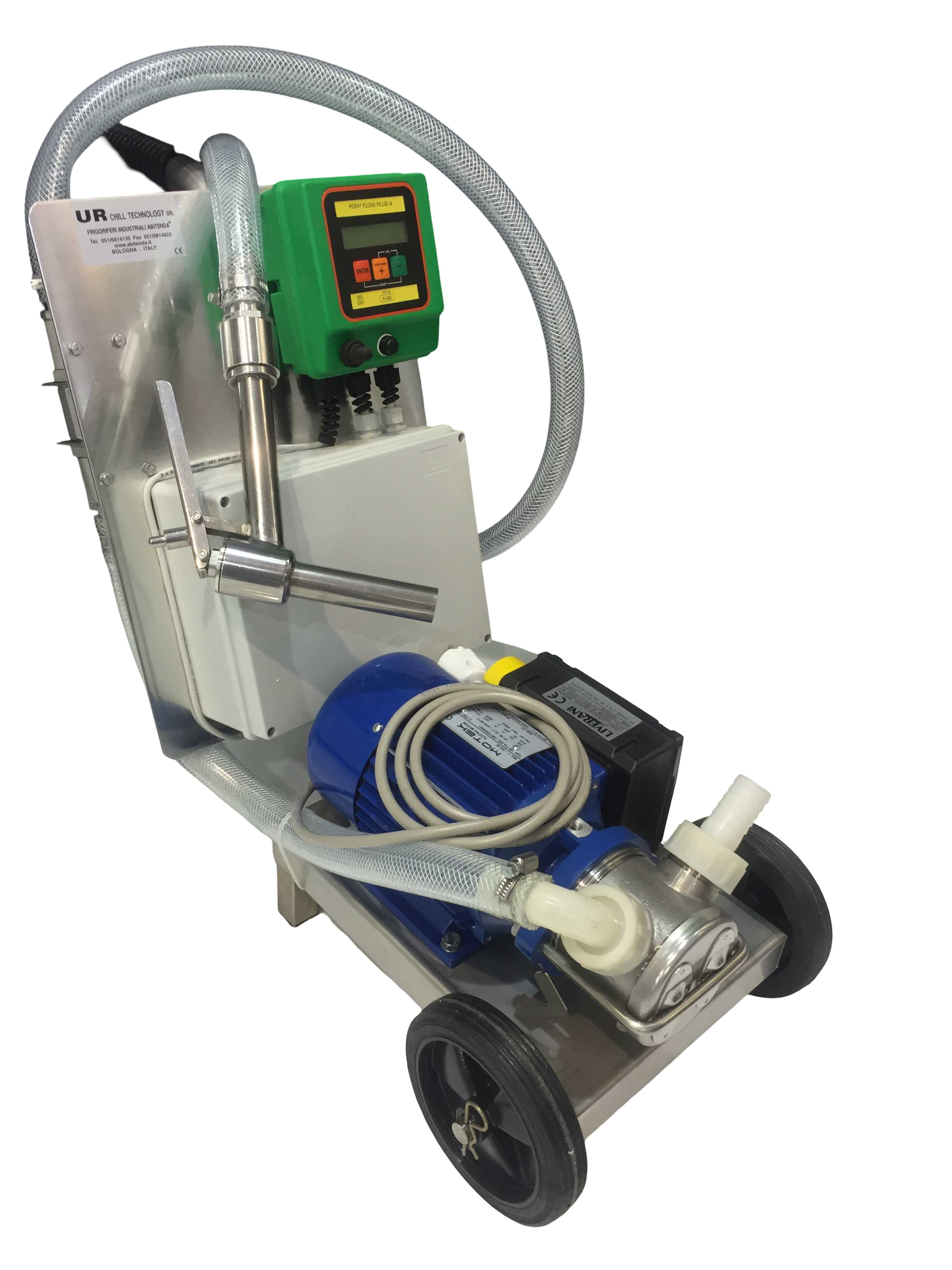

Complete dosing group
The pump is controlled directly from the PF4 Plus display so simply set the quantity you want to dispense on the display and press the START button; the electric pump starts and stops when the set liters are reached.
Price of the dosing unit with complete liter counter: €2490.00

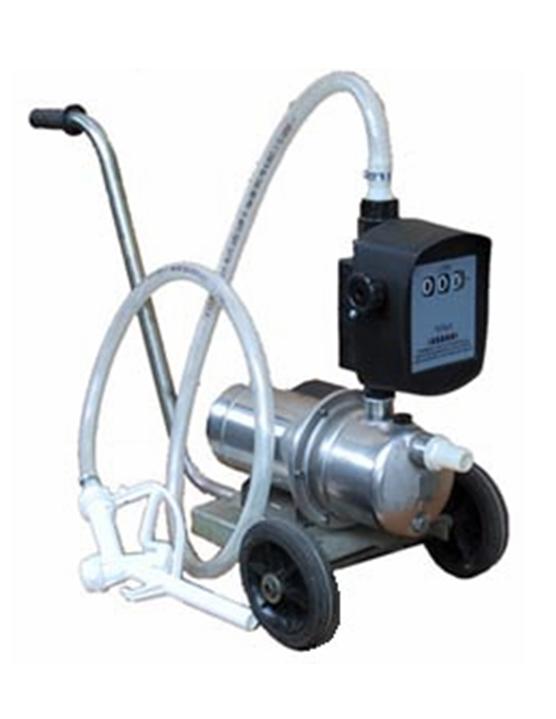

Transfer group with mechanical liter counter
Price of the LT20 decanting group with mechanical liter counter: €640.00
All prices indicated on the site are ex-warehouse
