neck freezers
UR Chill Technology
refrigeration solutions
Classic method neck freezers

Professional Neck Freezers for Classic Method (Champenoise)

The "CLASSIC"method essentially consists in the refermentation of the wine to be made into sparkling wine directly in the bottles, as well as in its subsequent maturation together with its residues (or lees) which give it greater body and flavour, and which will only be removed at a later stage
For this reason, after the first fundamental "roughings", the wine is directly decanted into the specific CHAMPENOISE bottles which have the opening designed for closure with the appropriate crown caps. The bottles are then left to rest for more or less long periods, from a few months up to three or more years, in cool cellars and away from sunlight, depending on the quality you want to obtain. At the end of this maturation, they must be subjected to "remuage", i.e. turned upside down to bring all the dregs and lees close to the crown cap, and this is achieved by tilting them almost vertically and rotating them periodically in the "pupitres", i.e. in those inclined tables full of holes designed specifically for this operation. When the "riddling"has brought all the lees towards the cork, leaving the wine above clear, these are eliminated with degorging, which is obtained by freezing the small part of the wine near the cork (and which contains the lees) using the neck freezer:
Freezing the neck of the bottle is the crucial phase of "degorgement"(or disgorgement). This machinery allows the sediments accumulated during remuage to be frozen and then expelled, guaranteeing maximum clarity of the sparkling wine without excessive losses of product or pressure.
Technical Characteristics and Operation:
Our neck freezers they use high-performance refrigeration units to cool a mixture of food grade propylene glycol down to temperatures between -25°C e -30°C.
Process:
By immersing the neck of the bottle upside down in the tank, an ice "cap"is formed which incorporates the exhausted yeasts.
Efficiency:
The speed of freezing ensures that only a minimal part of the wine is solidified, facilitating clean expulsion of the frozen block when uncorking.

We have other items that complete and simplify the production cycle:
The Pupitres used for riddling bottles. The degorger, supplied with a fixed bottle opener and waste collection bag, they allow you to remove the crown cap and collect it together with the expelled ice.
On request we can also supply the remaining machines necessary for the complete preparation of the sparkling wine bottle: dosing machine, wire cagers and cappers.

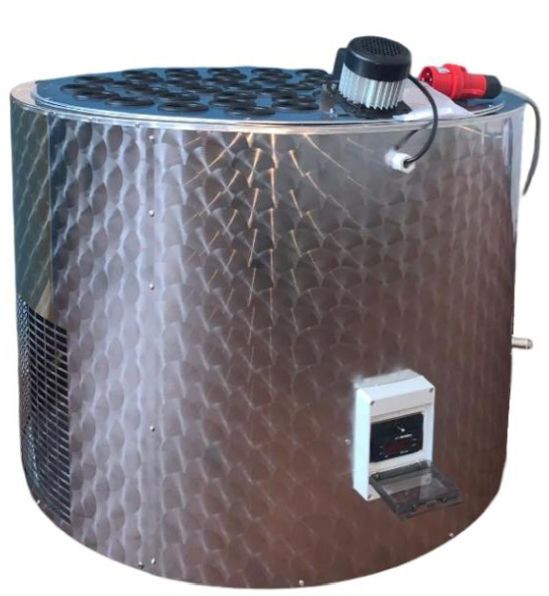

package freezers
Bottleneck freezers
(classic method)

Operates on glycol down to -25/-30°C.

Digital thermostat for temperature control

art. Bottle power supply V. watt cm. kg. lt.* bottles/h** Gas
1033220v 13026xh46 12315/20R134 1'798.00
0767220v 35040xh79 30930/45R452 2'665.00
07710220v 80046xh79 401860/80R452 3'458.00
12618220v 80060xh82 503575/100R452 3'698.00
08332220v 140085xh85 8565130/180R452 4'832.00
74332380v 120085xh85 8865140/200R452 4'987.00
08945/50220v 140096xh86 9288175/230R452 5'245.00
09345/50380v 120096xh86 9288185/240R452 5'465.00
* tank capacity Lt. glycolic mixture
** bottles/hour: varies with ambient temperature, glass thickness, etc.
Red = new model

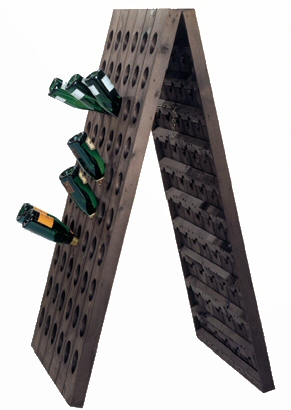

PUPITRES in painted solid fir wood

used for riddling bottles

24, 36 and 120 seats

mod./bottles cm.
Pupitre 24 38x11x84 weight Kg.12 228.00
Pupitre 36 38x11x110 weight 18 Kg 286.00
Pupitre 120 74x11x151 weight 30 kg 542.00
desk 120

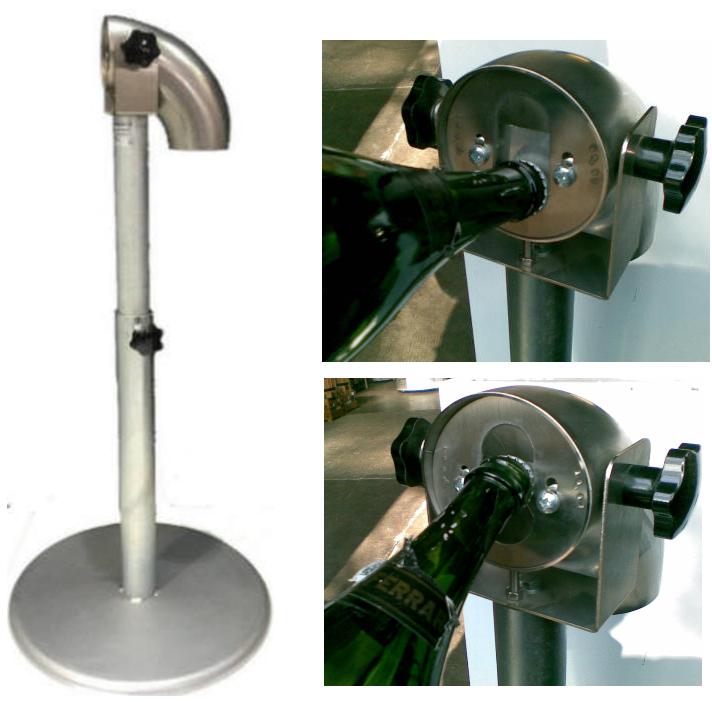

The manual degorger

It allows rapid extraction of the crown cap with piloted discharge of the bidule and frozen lees, avoiding splashes and ejections for the operator.
Wide base and height-adjustable galvanized iron upright.
Stainless steel head adjustable for inclination and cap size.

art. model cm. kg.
119 Degorger 48xh95(135) weight 12kg 23 527.00
degorgiatrice
glycol

USP non-toxic water/glycol mixture

50% glycol mixture, specific for food use.

Sold in 10 or 20 liter canisters ready for use inside our bottleneck freezers. The percentage of glycol must never fall below 50% otherwise ice will form around the coils which will inhibit the heat exchange, preventing the temperature from dropping further

€/litre 7.95

glycol food certification glycol food certification

All prices indicated on the site are ex-warehouse
