ELECTRIC STIRRERS TO MIX THE CONTENTS OF THE TANKS
They are systems that can be used on all types of tanks, to agitate the liquid contents

It is often necessary to mix a liquid contained in a tank to obtain homogeneous and stable liquid solutions, preventing the heavier components of the mixture from settling on the bottom of the tank (STRATIFICATION).

The system mainly used to obtain this result consists of inserting stirrers equipped with marine propellers kept rotating by an electric motor into the liquid itself. According to the density and characteristics of the liquid, electric motors without a gearmotor can be used, and in this case the rotation speed is the same as the electric motor (usually from 700 to 2800 rpm) or equipped with a mechanical gearmotor and in the latter case the rotation of the shaft on which the propeller is applied is reduced to a number of revolutions that depend on the reduction ratio; typically there is a low number of revolutions which sometimes reaches only 50 rpm. A similar result can be obtained by coupling the electric motor to an inverter so as to be able to regulate the number of revolutions of the electric motor itself using a potentiometer.

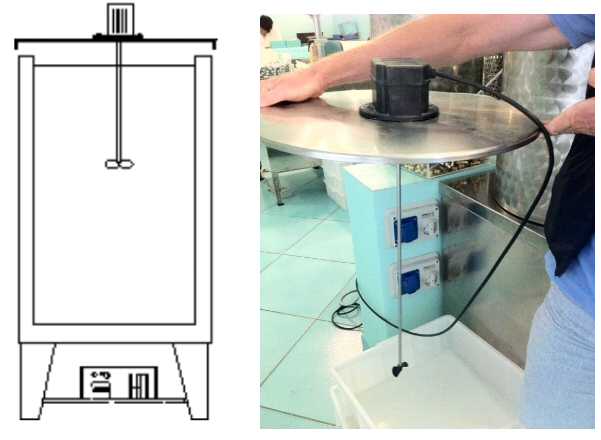

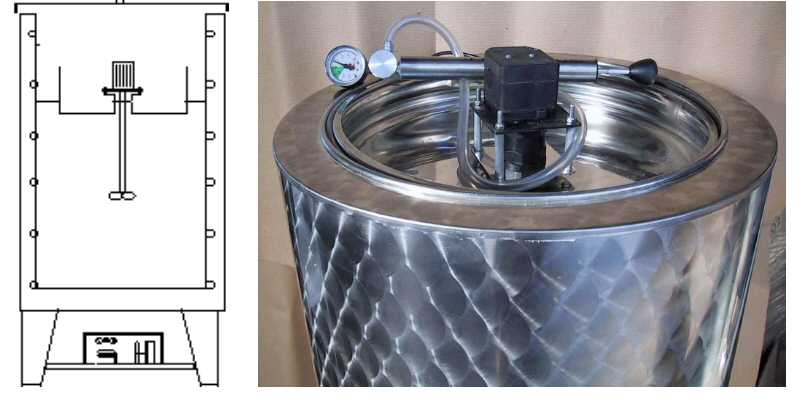

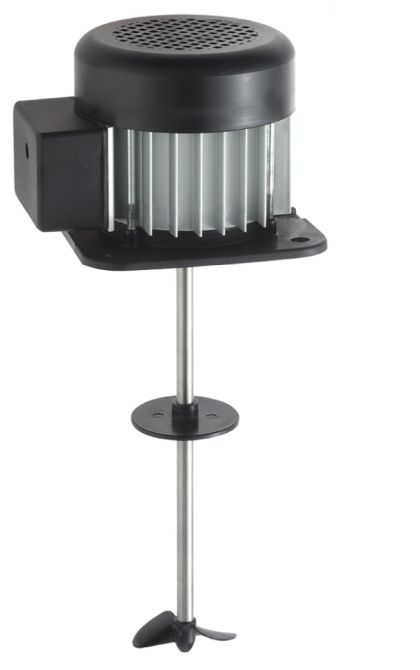

Fixed speed mixers

They are applied to the tank lid and the rotation rod (available in various lengths) is immersed in the liquid. They can also be installed on pneumatic floats
It is necessary to check that the propeller always remains submerged in the liquid but also that it does not touch the bottom of the tank

• Single-phase motor 220 V 50 Hz
• Rotor assembly on self-lubricating bearings (long-life).
• fixed rotation speed: 2800 rpm
• rotation rod length from 150 mm to 520 mm
• Comes complete with metal bracket for pump floats

Price of the stirrer complete with float bracket: €216.00

18/10 stainless steel stirrers equipped with expandable paddles for mixing liquids with max density 1.1 with salts, sugars, additives or adjuvants. to be used in full tanks up to 2000 litres. The peculiarity of this mixer is that it can be mounted on any full tank as long as it is equipped with a drain (with relative ball valve with a minimum passage hole of 25mm) positioned laterally in the tank. Easily transferable from one full tank to another. Garolla 40 standard attachments (on request: other attachments) The rotation of the axis with the extendable vanes is generated by an electric motor which can be at fixed speed, 1400 rpm, or a motor with inverter which can be adjusted as desired between 350 and 1400 rpm

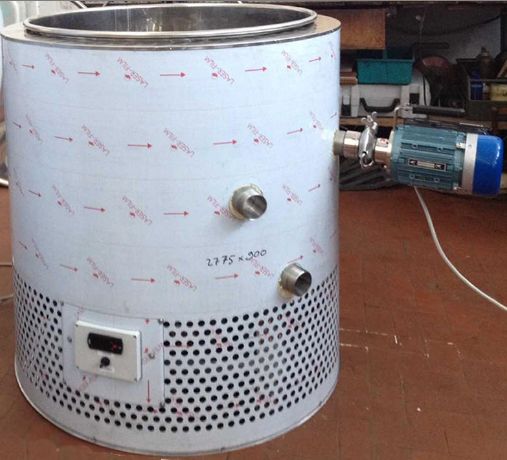

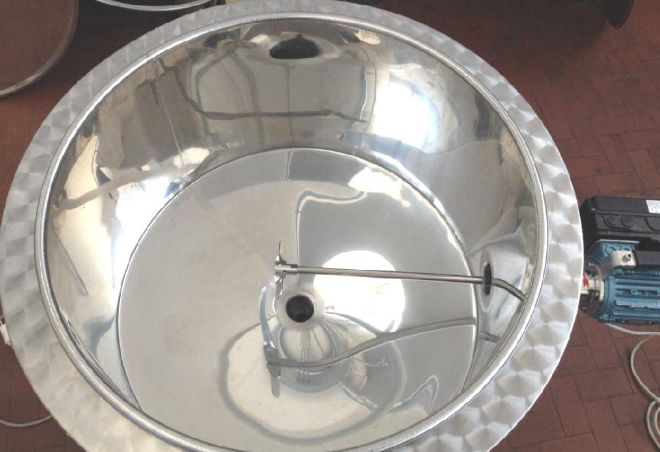

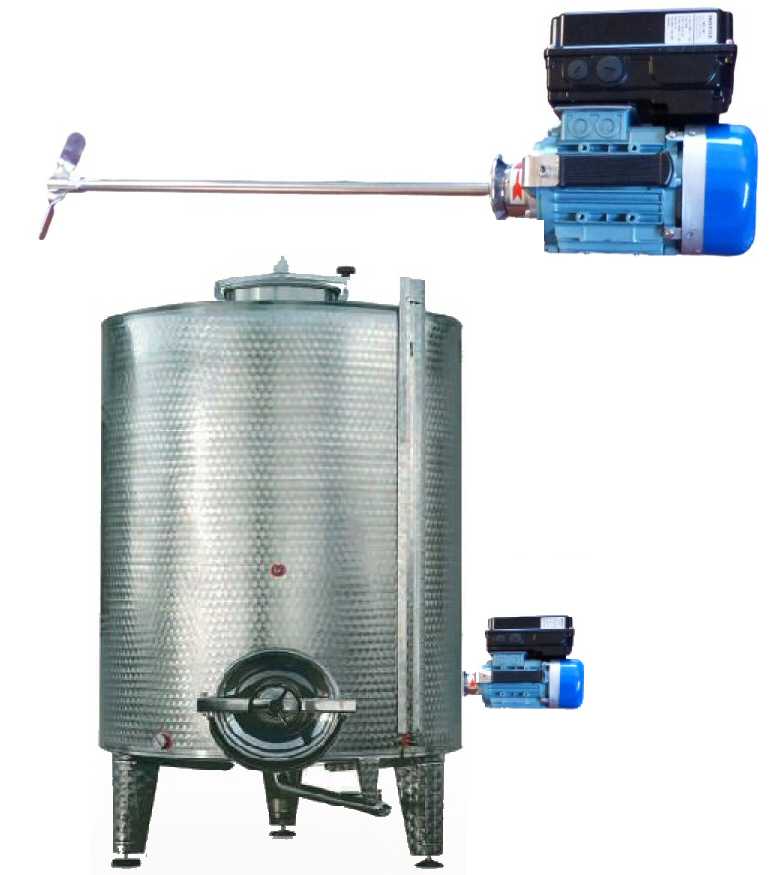

Side stirrers

This removable stainless steel stirrer is suitable for mixing, stirring and shaking any type of liquid. They are extremely flexible tools that are used in many companies operating in the food sector. The removable stirrer can be used with wine, beer, syrups, juices and chemicals. To install the agitator simply place it in the valve provided in the tank. The agitator has the possibility of having attacks of various types
GAROLLA/DIN/TRICLAMP

• Power supply 380 V – 220V with inverter
• Connection: Various types on request.
• Made of stainless steel
• Retractable propellers

Price of the side agitator with inverter: €1650.00
